Description

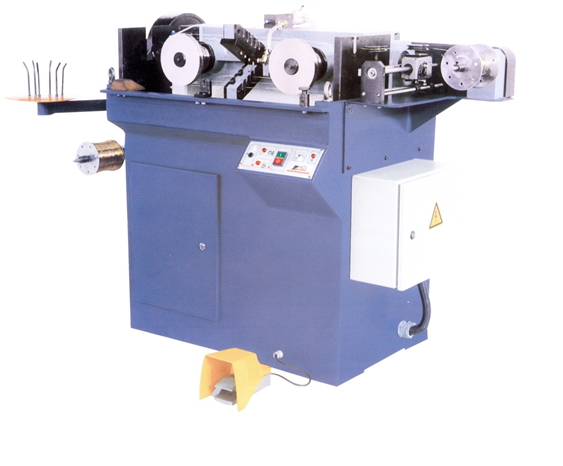

Machine created for the drawing of precious metals like gold, silver or similar.

The wire passes from one spinneret to another by a series of hardened and rectified rollers, which reduces the size to the diameter in needed. It has a wire winding system, motor pump for cooling the nozzles and push pedal.

The speed is variable through frequency drives.

Technical Specifications

Crossing number: 10

Maximum drawing capacity: from 2mm

Production speed: 30 to 60 m / min

Dimensions: 740 x 1300 x 1850 mm

Net Weight: 410 kg
