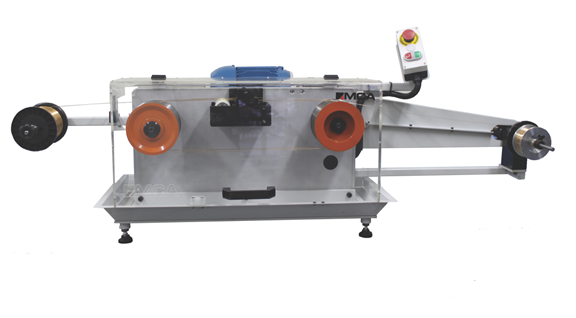

FOUR STEPS DRAWING MACHINE - TQP060

Description

Specific machine for reduce wire diameter gradually. It has a structure made of Aluminum (for weight reduction) and the other traction parts are produced in tempered steel.

Winding system equipped with sliding device to avoid the wire stretching and guarantee the measurement of the row. It use frequency drives on the main shaft and on the wire winding. You can reduce wires from the dimension 1.00mm to 0.20mm by passing through 4 spinneret.

Technical Specifications

Motor: 2CV - Single phase

Speed: 120 RPM

Dimensions: 1.500mm x 600mm x 450mm

Weight: 160Kg
